Overview

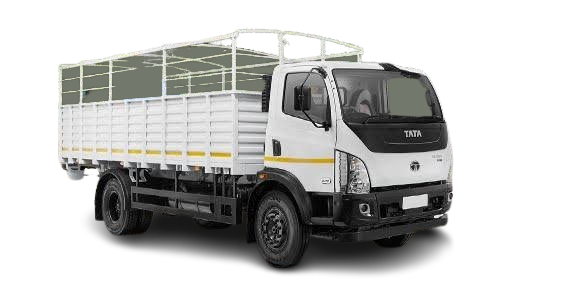

The Tata Ultra 1014 is a robust commercial vehicle designed for demanding transportation needs. With a GVW of 10400-10900 kg and delivers 126.6-140 HP @ 3000 rpm. Built for reliability and efficiency, the Tata Ultra 1014 is ideal for various commercial applications including goods transportation, construction, and logistics operations. Its advanced features, comfortable cabin, and low maintenance costs make it a preferred choice for fleet operators and individual truck owners.
Technical Specifications
| Engine Model | Tata NG 3L DICR |
| Displacement | 3000 cc |
| Max Power | 126.6-140 HP @ 3000 rpm |
| Max Torque | 360 Nm @ 1200-2000 rpm |
| No. of Cylinders | 4 |
| Fuel System | Common Rail Direct Injection |
| Emission Norm | BS4 |
| Fuel Tank Capacity | 90-160 Litres |
| Gross Vehicle Weight (GVW) | 10400-10900 kg |
| Payload Capacity | 7280 kg |
| Kerb Weight | 3620 kg |
| Rated Payload | 7280 kg |
| Gradeability | 28% |
| Transmission | GB 550 6-Speed Manual |
| Clutch | 330 mm Single Plate Dry Friction with Booster |
| Axle Configuration | 4x2 |
| Front Suspension | Parabolic Leaf Spring with Shock Absorbers |
| Rear Suspension | Semi-Elliptical with Auxiliary Springs |
| Front Brake | Hydraulic |
| Rear Brake | Hydraulic |
| Parking Brake | 1 |
| ABS | Not Available |
| Front Tyre | 7.50 R16 |
| Rear Tyre | 7.50 R16 |
| No. of Tyres | 6 |
| Wheel Type | Steel |
| Cabin Type | Day Cab |
| Seating Capacity | 1 |
| Air Conditioning | 1 |
| Power Steering | Standard |
| Battery | 12V |
Tata Ultra 1014 Pros & Cons
- Excellent payload capacity
- Fuel-efficient engine
- Strong build quality
- Comfortable cabin for long drives
- Low maintenance costs
- Wide service network
- Higher initial investment
- Large turning radius
- Basic interior features
- Limited color options
Frequently Asked Questions
What is the payload capacity of Tata Ultra 1014?
The Tata Ultra 1014 offers 7280 kg. Contact dealer for specific configuration details.
What is the mileage?
Delivers 5-8 kmpl depending on load. Actual mileage varies with load and driving conditions.
What is the GVW (Gross Vehicle Weight)?
GVW is 10400-10900 kg.
Is financing available?
Yes, various financing options available with competitive interest rates. Contact dealer for EMI plans.
What is the warranty period?
Standard manufacturer warranty applies. Extended warranty options available.
Service network availability?
Wide service network across India with trained technicians and genuine spare parts.
Suitable for inter-state operations?
Yes, complies with all regulatory requirements for inter-state commercial operations.
What emission norm does it meet?
Meets BS4 emission standards.
